Description
Specification
Insulation Technical Data
Copper Tube Safe Working Pressure

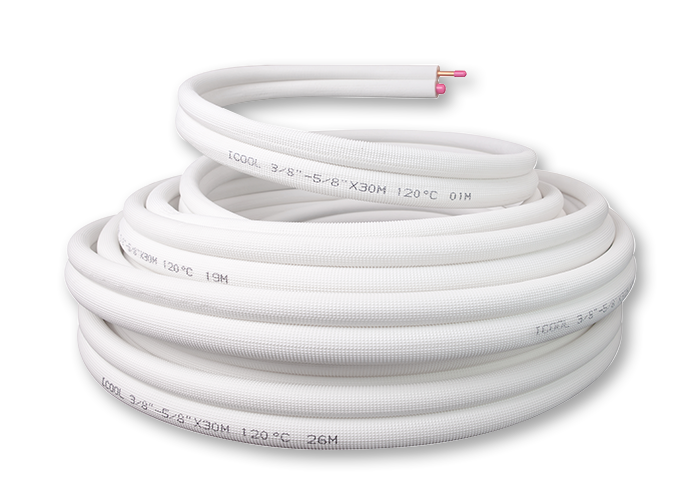

· ICOOL White Pair Coil manufactured to Australian Standard AS/NZS 1571 is suitable for use in domestic split system air conditioners with high pressure refrigerants R410A and R32.

· Produced to be more durable with embossed polyethylene film and crossed-linked, foamed closed cell polyethylene outer insulation.

· The 20 metre pre-insulated annealed copper pair coil with continous marking every meter makes it easy to install and save time & money as no measurement, glue or tape is needed.

Product Code Copper Tube Outside Diameter & Wall Thickness  (mm) Copper Tube Outside Diameter (inch) Length(m) R-Values R410A & R32 Rated
IPC2320 6.35x0.81+9.52x0.81 1/4+3/8 20 0.26 Yes
IPC2420 6.35x0.81+12.70x0.81 1/4+1/2 20 0.26 Yes
IPC2520 6.35x0.81+15.88x1.02 1/4+5/8 20 0.26 Yes
IPC3520 9.52x0.81+15.88x1.02 3/8+5/8 20 0.26 Yes
IPC3620 9.52x0.81+19.05x1.14 3/8+3/4 20 0.26 Yes
IPC4620 12.70x0.81+19.05x1.14 1/2+3/4 20 0.26 Yes
Material Highly flexible paired polyethylene
Thermal Conductivity 0.035W/m.K.at 0℃
Tensile Strength 55.8N/cm2(kgf/cm2)
Water Absorption 0.0051 MAX g/100cm2
Thickness Shrinkage 6% MAX @ 120±5℃
Appearance Density Inner Tube: 0.028g/cm3; Outside Tube: 0.0303g/cm3
Moisture Permeability 8.6x10-11g/(m2●s●Pa)
Copper Tube Outside Diameter & Wall Thickness (mm) Safe Working Pressure (kpa)
50℃ 65℃ 75℃
6.35x0.81 10635 9545 8820
9.52x0.81 6800 6105 5640
12.70x0.81 4995 4480 4140
15.88x1.02 5030 4515 4170
19.05x1.14 4697 4181 3895
Description

· ICOOL White Pair Coil manufactured to Australian Standard AS/NZS 1571 is suitable for use in domestic split system air conditioners with high pressure refrigerants R410A and R32.

· Produced to be more durable with embossed polyethylene film and crossed-linked, foamed closed cell polyethylene outer insulation.

· The 20 metre pre-insulated annealed copper pair coil with continous marking every meter makes it easy to install and save time & money as no measurement, glue or tape is needed.

Specification
Product Code Copper Tube Outside Diameter & Wall Thickness  (mm) Copper Tube Outside Diameter (inch) Length(m) R-Values R410A & R32 Rated
IPC2320 6.35x0.81+9.52x0.81 1/4+3/8 20 0.26 Yes
IPC2420 6.35x0.81+12.70x0.81 1/4+1/2 20 0.26 Yes
IPC2520 6.35x0.81+15.88x1.02 1/4+5/8 20 0.26 Yes
IPC3520 9.52x0.81+15.88x1.02 3/8+5/8 20 0.26 Yes
IPC3620 9.52x0.81+19.05x1.14 3/8+3/4 20 0.26 Yes
IPC4620 12.70x0.81+19.05x1.14 1/2+3/4 20 0.26 Yes
Insulation Technical Data
Material Highly flexible paired polyethylene
Thermal Conductivity 0.035W/m.K.at 0℃
Tensile Strength 55.8N/cm2(kgf/cm2)
Water Absorption 0.0051 MAX g/100cm2
Thickness Shrinkage 6% MAX @ 120±5℃
Appearance Density Inner Tube: 0.028g/cm3; Outside Tube: 0.0303g/cm3
Moisture Permeability 8.6x10-11g/(m2●s●Pa)
Copper Tube Safe Working Pressure
Copper Tube Outside Diameter & Wall Thickness (mm) Safe Working Pressure (kpa)
50℃ 65℃ 75℃
6.35x0.81 10635 9545 8820
9.52x0.81 6800 6105 5640
12.70x0.81 4995 4480 4140
15.88x1.02 5030 4515 4170
19.05x1.14 4697 4181 3895
